[Kotlin] BottomSheetDialog

BottomSheetDialog  ->  머티리얼 디자인  ->  BottomSheetDialog() 클래스 생성  ->  setContentView 설정

---





build.gradle (Module: app)

dependencies {
    implementation 'com.google.android.material:material:1.1.0'
}

BottomSheetDialog 는 머티리얼 디자인이므로 의존성 추가

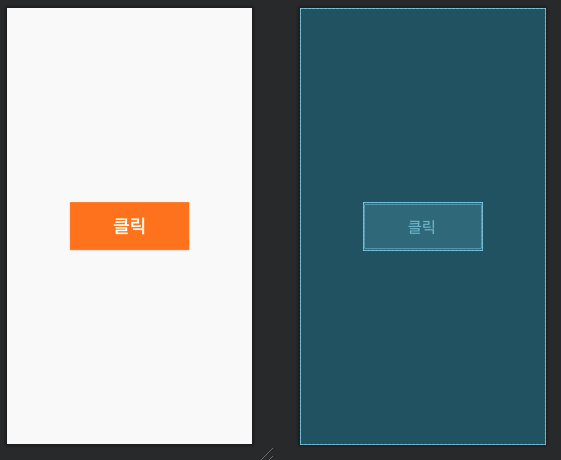

activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".MainActivity">

    <Button
        android:id="@+id/btnClick"
        android:layout_width="200dp"
        android:layout_height="80dp"
        android:text="클릭"
        android:textSize="30dp"
        android:textColor="#FFFFFF"
        android:textStyle="bold"
        android:background="#FF7F00"
        app:layout_constraintTop_toTopOf="parent"
        app:layout_constraintLeft_toLeftOf="parent"
        app:layout_constraintRight_toRightOf="parent"
        app:layout_constraintBottom_toBottomOf="parent" />

</androidx.constraintlayout.widget.ConstraintLayout>

activity_main.xml

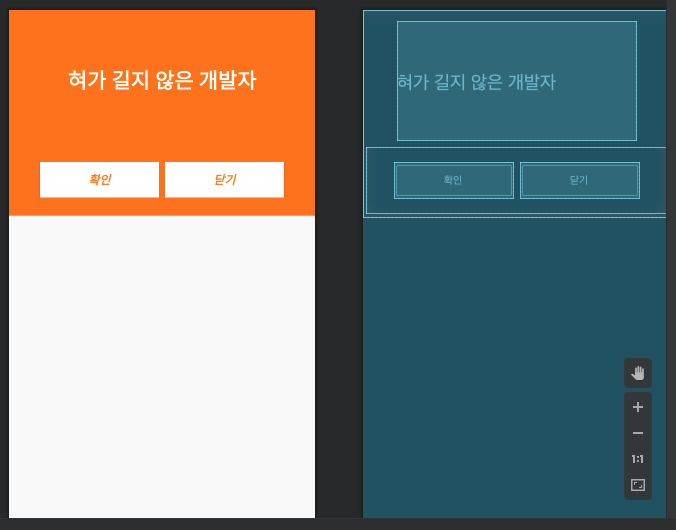

bottom_sheet.xml

<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    android:layout_width="match_parent"
    android:layout_height="wrap_content">

    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:orientation="vertical"
        app:layout_constraintTop_toTopOf="parent"
        app:layout_constraintLeft_toLeftOf="parent"
        app:layout_constraintRight_toRightOf="parent"
        app:layout_constraintBottom_toBottomOf="parent"
        android:gravity="center"
        android:padding="4dp"
        android:background="#FF7F00">

        <TextView
            android:layout_width="320dp"
            android:layout_height="160dp"
            android:text="혀가 길지 않은 개발자"
            android:textSize="28dp"
            android:textColor="#FFFFFF"
            android:textStyle="bold"
            android:gravity="center"
            android:layout_marginTop="10dp"
            android:layout_marginBottom="10dp"/>

        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:orientation="horizontal"
            android:gravity="center"
            android:padding="20dp">

            <Button
                android:id="@+id/btnOK"
                android:layout_width="160dp"
                android:layout_height="wrap_content"
                android:text="확인"
                android:textSize="16dp"
                android:textStyle="italic|bold"
                android:textColor="#FF7F00"
                android:background="#FFFFFF" />

            <Button
                android:id="@+id/btnClose"
                android:layout_width="160dp"
                android:layout_height="wrap_content"
                android:text="닫기"
                android:textSize="16dp"
                android:textStyle="italic|bold"
                android:layout_marginLeft="8dp"
                android:textColor="#FF7F00"
                android:background="#FFFFFF" />

        </LinearLayout>

    </LinearLayout>

</androidx.constraintlayout.widget.ConstraintLayout>

bottom_sheet.xml













MainActivity.kt

package com.jwsoft.kotlinproject

import android.content.Context
import androidx.appcompat.app.AppCompatActivity
import android.os.Bundle
import android.view.LayoutInflater
import android.view.View
import android.widget.Button
import android.widget.Toast
import com.google.android.material.bottomsheet.BottomSheetDialog
import kotlinx.android.synthetic.main.bottom_sheet.view.*

class MainActivity : AppCompatActivity() {

    private lateinit var btnClick: Button

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setContentView(R.layout.activity_main)

        btnClick = findViewById(R.id.btnClick)

        val inflater: LayoutInflater = getSystemService(Context.LAYOUT_INFLATER_SERVICE) as LayoutInflater
        val view: View = inflater.inflate(R.layout.bottom_sheet, null, false)
        val bottomSheetDialog = BottomSheetDialog(applicationContext)
        bottomSheetDialog.setContentView(view)
        // bottomSheetDialog.setContentView(R.layout.bottom_sheet) 이렇게 사용 가능

        btnClick.setOnClickListener {
            bottomSheetDialog.show()
        }

        view.btnOK.setOnClickListener {
            Toast.makeText(applicationContext, "확인", Toast.LENGTH_SHORT).show()
            bottomSheetDialog.dismiss()
        }
        view.btnClose.setOnClickListener {
            Toast.makeText(applicationContext, "닫기", Toast.LENGTH_SHORT).show()
            bottomSheetDialog.dismiss()
        }
    }
}

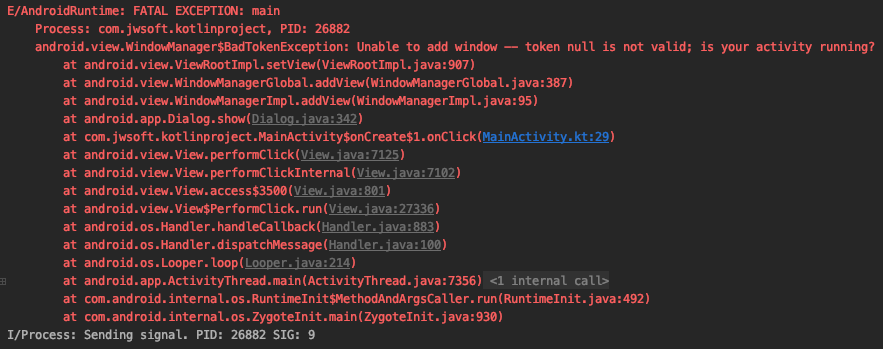

val bottomSheetDialog = BottomSheetDialog(applicationContext)   -> 실행 후 버튼 클릭 시 에러 발생.















MainActivity.kt

package com.jwsoft.kotlinproject

import android.content.Context
import androidx.appcompat.app.AppCompatActivity
import android.os.Bundle
import android.view.LayoutInflater
import android.view.View
import android.widget.Button
import android.widget.Toast
import com.google.android.material.bottomsheet.BottomSheetDialog
import kotlinx.android.synthetic.main.bottom_sheet.view.*

class MainActivity : AppCompatActivity() {

    private lateinit var btnClick: Button

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setContentView(R.layout.activity_main)

        btnClick = findViewById(R.id.btnClick)

        val inflater: LayoutInflater = getSystemService(Context.LAYOUT_INFLATER_SERVICE) as LayoutInflater
        val view: View = inflater.inflate(R.layout.bottom_sheet, null, false)
        val bottomSheetDialog = BottomSheetDialog(this)
        bottomSheetDialog.setContentView(view)
        // bottomSheetDialog.setContentView(R.layout.bottom_sheet) 이렇게 사용 가능

        btnClick.setOnClickListener {
            bottomSheetDialog.show()
        }

        view.btnOK.setOnClickListener {
            Toast.makeText(applicationContext, "확인", Toast.LENGTH_SHORT).show()
            bottomSheetDialog.dismiss()
        }
        view.btnClose.setOnClickListener {
            Toast.makeText(applicationContext, "닫기", Toast.LENGTH_SHORT).show()
            bottomSheetDialog.dismiss()
        }
    }
}

val bottomSheetDialog = BottomSheetDialog(this)   -> 실행 후 버튼 클릭 시 정상 작동

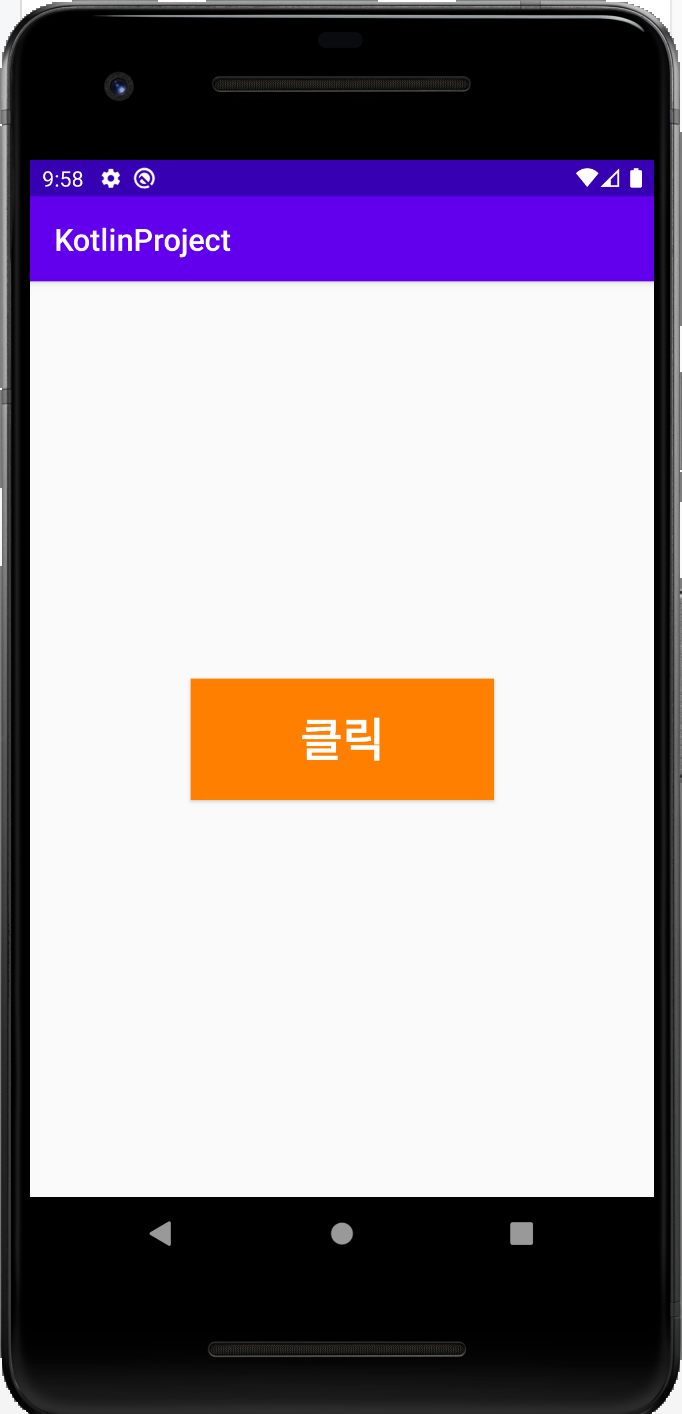

실행 결과

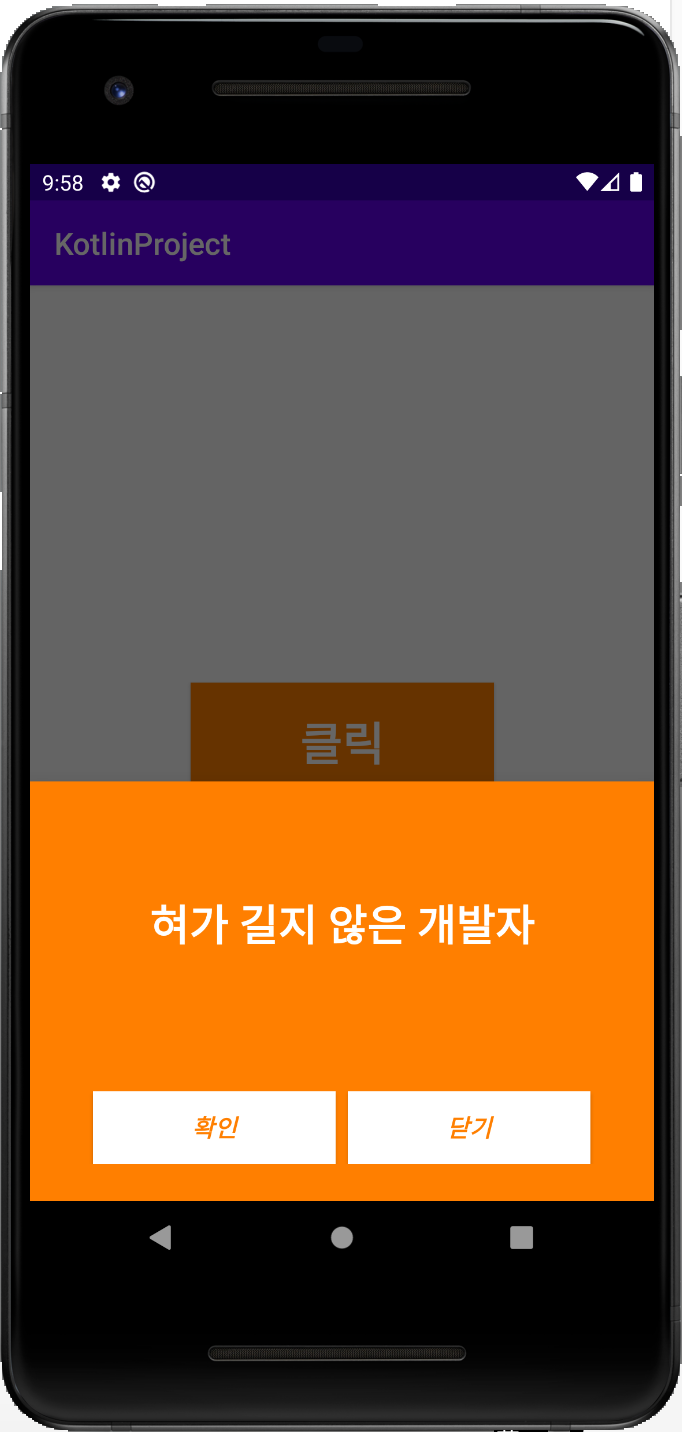

버튼 클릭 후

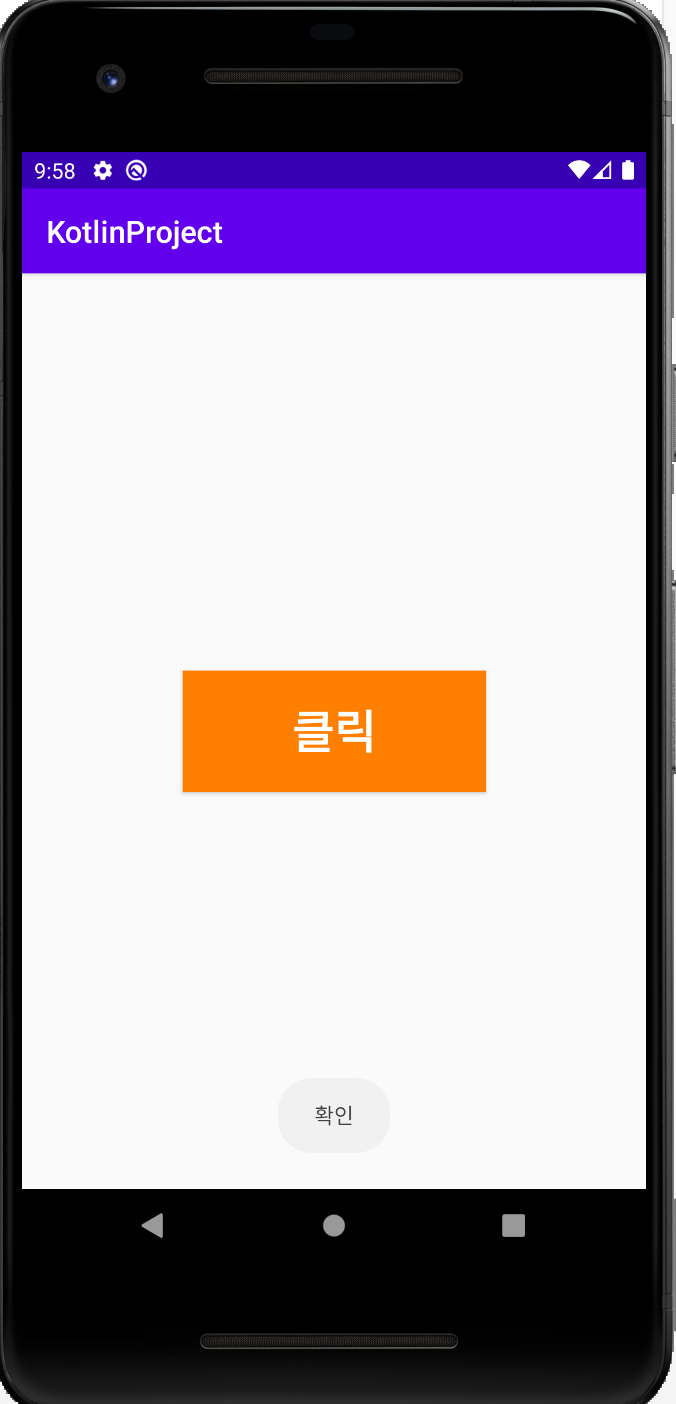

확인 버튼 클릭 후

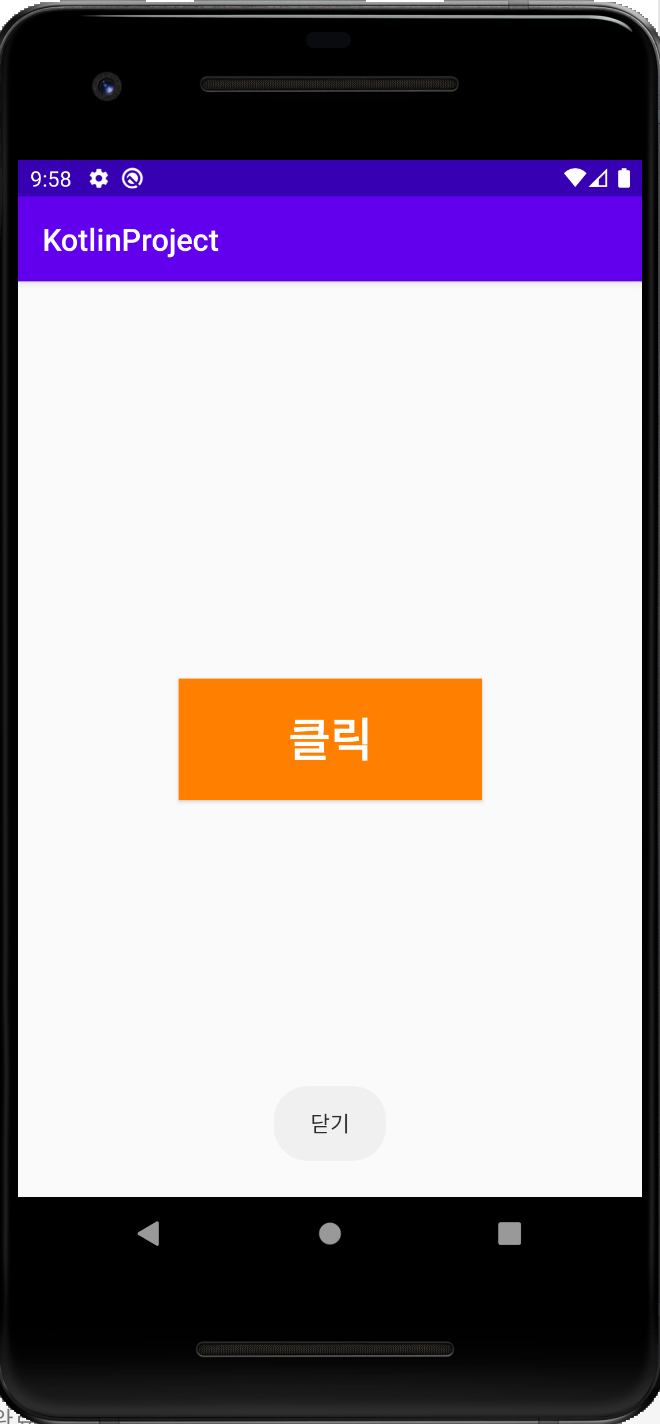

닫기 버튼 클릭 후
