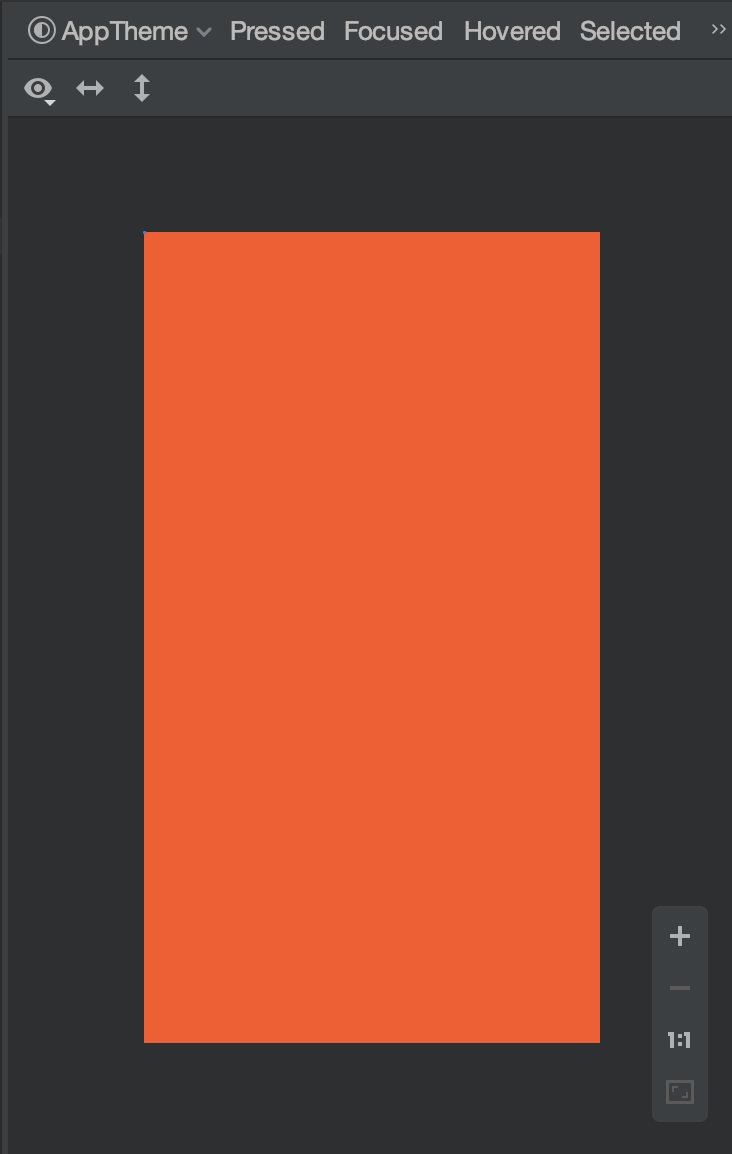

<TextView> 꾸미기

drawable/tv_solid_rect.xml

<?xml version="1.0" encoding="utf-8"?>
<selector xmlns:android="http://schemas.android.com/apk/res/android">
    <item>
        <shape>
            <solid android:color="#FF541F" />
        </shape>
    </item>
</selector>

tv_solid_rect.xml

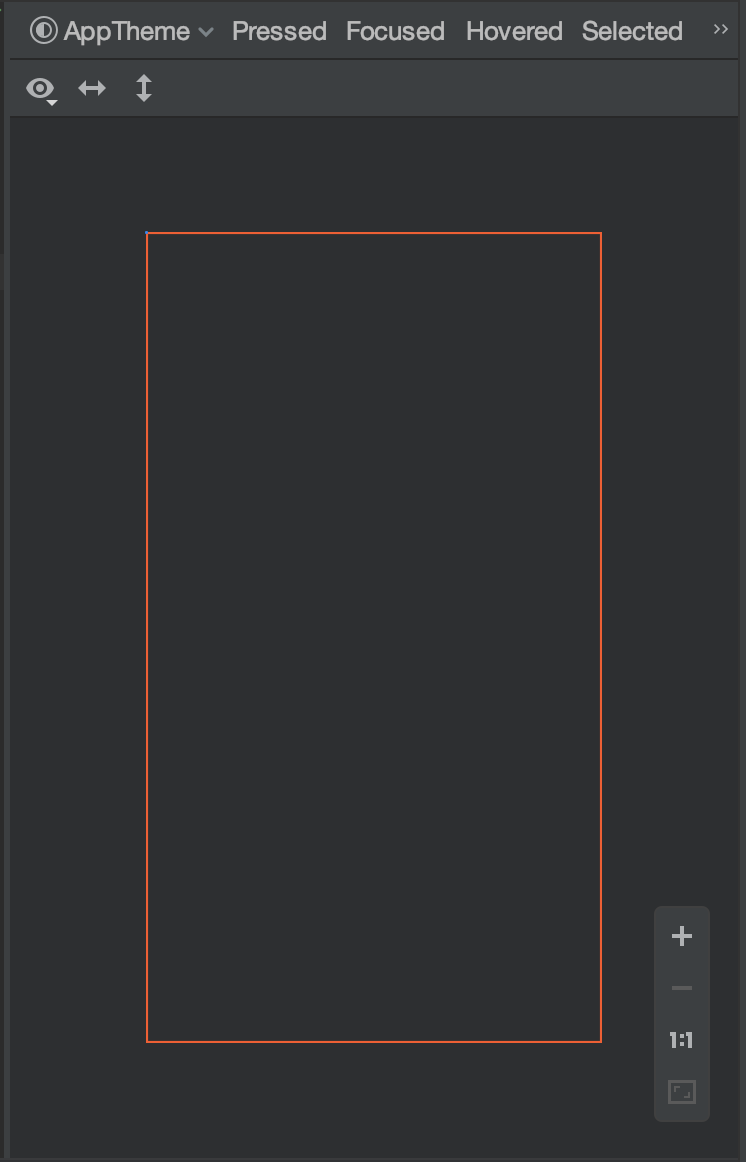

drawable/tv_stroke_rect.xml

<?xml version="1.0" encoding="utf-8"?>
<selector xmlns:android="http://schemas.android.com/apk/res/android">
    <item>
        <shape>
            <stroke android:width="2dp" android:color="#FF541F" />
        </shape>
    </item>
</selector>

tv_stroke_rect.xml











layout/activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="horizontal"
    android:gravity="center"
    tools:context=".MainActivity">

    <TextView
        android:layout_width="178dp"
        android:layout_height="72dp"
        android:text="James Kim"
        android:textSize="20dp"
        android:textColor="#FF541F"
        android:textStyle="bold"
        android:gravity="center"
        android:background="@drawable/tv_stroke_rect"/>

    <TextView
        android:layout_width="178dp"
        android:layout_height="72dp"
        android:layout_marginLeft="12dp"
        android:text="James Kim"
        android:textSize="20dp"
        android:textColor="@android:color/white"
        android:textStyle="bold"
        android:gravity="center"
        android:background="@drawable/tv_solid_rect"/>

</LinearLayout>

activity_main.xml











MainActivity.kt

package com.jwsoft.kotlinproject

import androidx.appcompat.app.AppCompatActivity
import android.os.Bundle
import android.widget.Toast
import kotlinx.android.synthetic.main.activity_main.*

class MainActivity : AppCompatActivity() {

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setContentView(R.layout.activity_main)

        btnStroke.setOnClickListener {
            Toast.makeText(applicationContext, "Stroke", Toast.LENGTH_SHORT).show()
        }

        btnSolid.setOnClickListener {
            Toast.makeText(applicationContext, "Solid", Toast.LENGTH_SHORT).show()
        }
    }

}

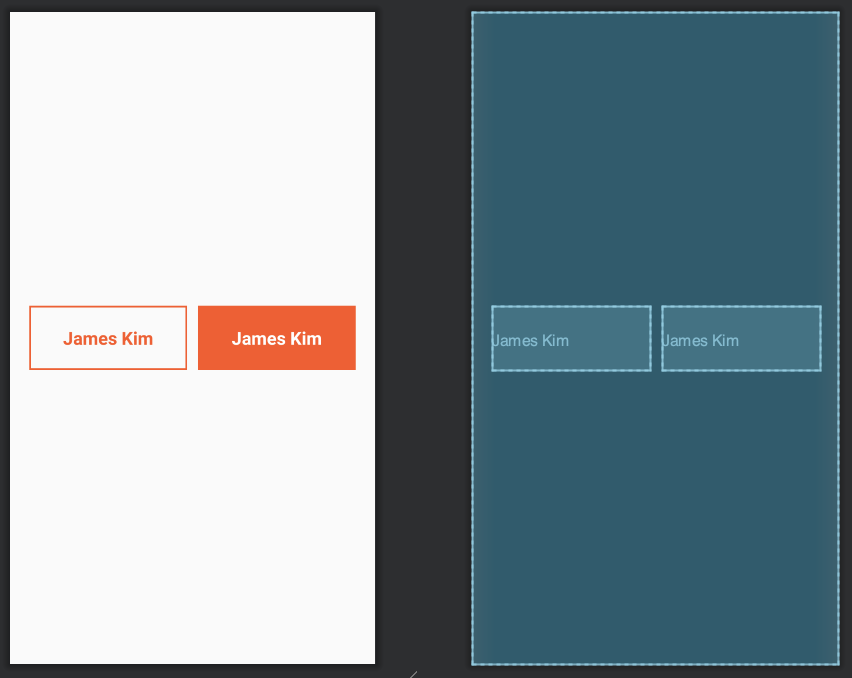

실행 결과



클릭 이벤트는 발생하나 사용자 입장에서 눌리는 건지 안 눌리는 건지 알 수 없다.

이펙트가 필요하다.















layout/activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="horizontal"
    android:gravity="center"
    tools:context=".MainActivity">

    <TextView
        android:id="@+id/btnStroke"
        android:layout_width="178dp"
        android:layout_height="72dp"
        android:text="James Kim"
        android:textSize="20dp"
        android:textColor="#FF541F"
        android:textStyle="bold"
        android:gravity="center"
        android:background="@drawable/tv_stroke_rect"
        android:clickable="true"
        android:focusable="true"
        android:foreground="?android:attr/selectableItemBackground"/>

    <TextView
        android:id="@+id/btnSolid"
        android:layout_width="178dp"
        android:layout_height="72dp"
        android:layout_marginLeft="12dp"
        android:text="James Kim"
        android:textSize="20dp"
        android:textColor="@android:color/white"
        android:textStyle="bold"
        android:gravity="center"
        android:background="@drawable/tv_solid_rect"
        android:clickable="true"
        android:focusable="true"
        android:foreground="?android:attr/selectableItemBackground"/>

</LinearLayout>

android:clickable="true"

android:focusable="true"

android:foreground="?android:attr/selectableItemBackground"

추가 시 버튼이 클릭되는 것처럼 효과가 나타난다.

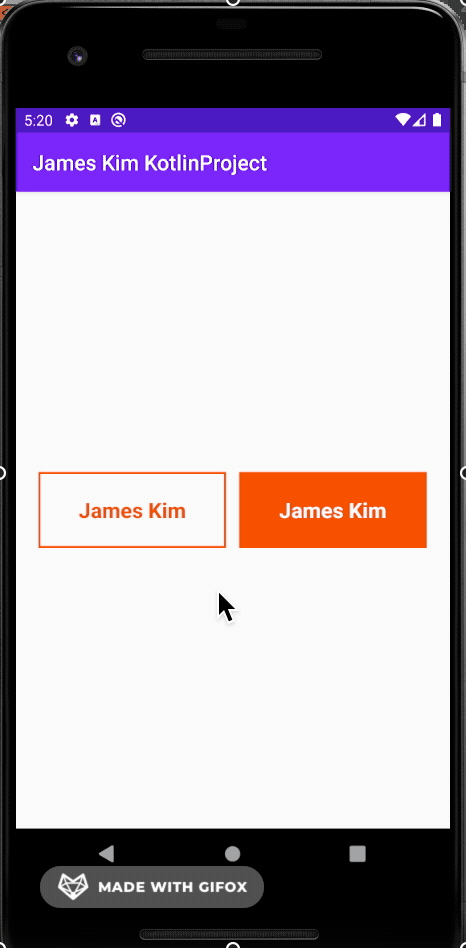

실행 결과
