<Flow>

혀가 길지 않은 개발자 2020. 8. 24. 10:37

<androidx.constraintlayout.helper.widget.Flow>

build.gradle (Module: app)

dependencies {
    // <androidx.constraintlayout.helper.widget.Flow>
    implementation 'androidx.constraintlayout:constraintlayout:2.0.0-rc1'
}











activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:ignore="MissingConstraints">

    <androidx.constraintlayout.widget.ConstraintLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        app:layout_constraintTop_toTopOf="parent"
        app:layout_constraintLeft_toLeftOf="parent"
        app:layout_constraintRight_toRightOf="parent"
        app:layout_constraintBottom_toBottomOf="parent">

        <androidx.constraintlayout.helper.widget.Flow
            android:layout_width="0dp"
            android:layout_height="100dp"
            android:orientation="horizontal"
            app:constraint_referenced_ids="btnOne, btnTwo, btnThree"
            app:flow_verticalAlign="center"
            app:flow_horizontalGap="30dp"
            app:flow_horizontalStyle="packed"
            app:flow_horizontalBias="0.2"
            app:layout_constraintBottom_toBottomOf="parent"
            app:layout_constraintEnd_toEndOf="parent"
            app:layout_constraintStart_toStartOf="parent"
            app:layout_constraintTop_toTopOf="parent" />

        <Button
            android:id="@+id/btnOne"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:text="One"
            app:layout_constraintRight_toLeftOf="@+id/btnTwo"
            app:layout_constraintTop_toTopOf="parent"
            app:layout_constraintBottom_toBottomOf="parent"
            app:layout_constraintLeft_toLeftOf="parent"/>

        <Button
            android:id="@+id/btnTwo"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:text="Two"
            app:layout_constraintLeft_toRightOf="@+id/btnOne"
            app:layout_constraintRight_toLeftOf="@+id/btnThree"
            app:layout_constraintTop_toTopOf="parent"
            app:layout_constraintBottom_toBottomOf="parent"/>

        <Button
            android:id="@+id/btnThree"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:text="Three"
            app:layout_constraintLeft_toRightOf="@+id/btnTwo"
            app:layout_constraintTop_toTopOf="parent"
            app:layout_constraintBottom_toBottomOf="parent"
            app:layout_constraintRight_toRightOf="parent"/>

    </androidx.constraintlayout.widget.ConstraintLayout>

</androidx.constraintlayout.widget.ConstraintLayout>

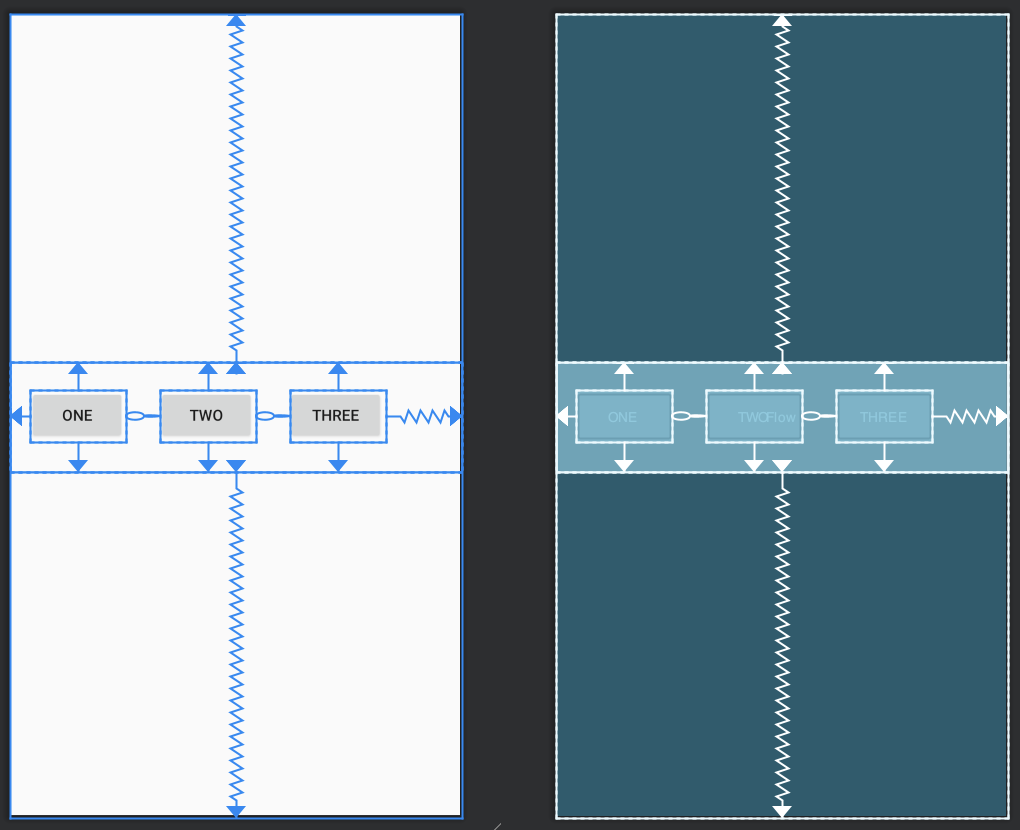

app:constraint_referenced_ids="btnOne, btnTwo, btnThree"

app:flow_verticalAlign="center"

app:flow_horizontalGap="30dp"

app:flow_horizontalStyle="packed"

app:flow_horizontalBias="0.2"



activity_main.xml













activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:ignore="MissingConstraints">

    <androidx.constraintlayout.widget.ConstraintLayout
        android:layout_width="300dp"
        android:layout_height="match_parent"
        app:layout_constraintTop_toTopOf="parent"
        app:layout_constraintLeft_toLeftOf="parent"
        app:layout_constraintRight_toRightOf="parent"
        app:layout_constraintBottom_toBottomOf="parent">

        <androidx.constraintlayout.helper.widget.Flow
            android:layout_width="match_parent"
            android:layout_height="match_parent"
            android:orientation="vertical"
            app:constraint_referenced_ids=" btnOne, btnTwo, btnThree"
            app:flow_horizontalAlign="start"
            app:flow_verticalGap="30dp"
            app:flow_verticalBias="0.1"
            app:flow_verticalStyle="packed"
            app:layout_constraintBottom_toBottomOf="parent"
            app:layout_constraintEnd_toEndOf="parent"
            app:layout_constraintStart_toStartOf="parent"
            app:layout_constraintTop_toTopOf="parent" />

        <Button
            android:id="@+id/btnOne"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:text="One"/>

        <Button
            android:id="@+id/btnTwo"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:text="Two"/>

        <Button
            android:id="@+id/btnThree"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:text="Three"/>

    </androidx.constraintlayout.widget.ConstraintLayout>

</androidx.constraintlayout.widget.ConstraintLayout>

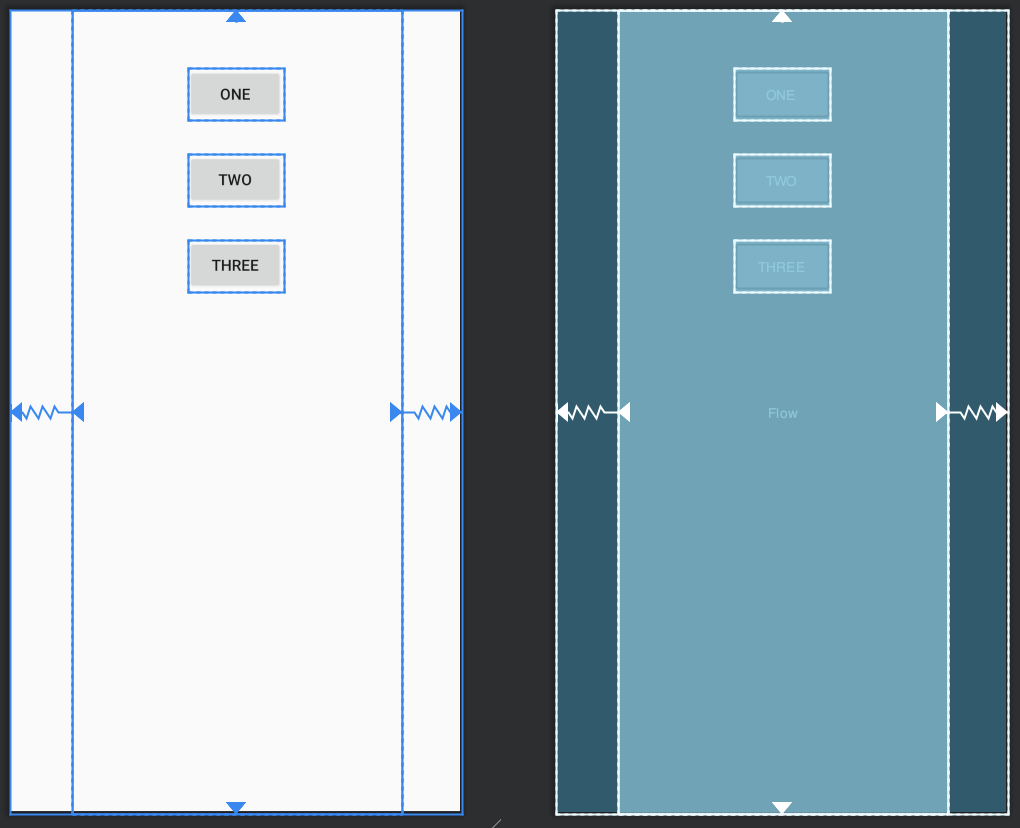

android:orientation="vertical"

app:constraint_referenced_ids="btnOne, btnTwo, btnThree"

app:flow_horizontalAlign="start"  // 이건 왜 적용이 안되냐

app:flow_verticalGap="30dp"

app:flow_verticalBias="0.1"

app:flow_verticalStyle="packed"



activity_main.xml













activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:ignore="MissingConstraints">

    <androidx.constraintlayout.widget.ConstraintLayout
        android:layout_width="300dp"
        android:layout_height="match_parent"
        app:layout_constraintTop_toTopOf="parent"
        app:layout_constraintLeft_toLeftOf="parent"
        app:layout_constraintRight_toRightOf="parent"
        app:layout_constraintBottom_toBottomOf="parent">

        <androidx.constraintlayout.helper.widget.Flow
            android:layout_width="match_parent"
            android:layout_height="match_parent"
            android:orientation="vertical"
            app:constraint_referenced_ids=" btnOne, btnTwo, btnThree, btnfour, btnFive"
            app:flow_verticalStyle="packed"
            app:flow_wrapMode="chain"
            app:flow_maxElementsWrap="2"
            app:layout_constraintBottom_toBottomOf="parent"
            app:layout_constraintEnd_toEndOf="parent"
            app:layout_constraintStart_toStartOf="parent"
            app:layout_constraintTop_toTopOf="parent" />

        <Button
            android:id="@+id/btnOne"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:textAllCaps="false"
            android:text="One"/>

        <Button
            android:id="@+id/btnTwo"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:textAllCaps="false"
            android:text="Two"/>

        <Button
            android:id="@+id/btnThree"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:textAllCaps="false"
            android:text="Three"/>

        <Button
            android:id="@+id/btnfour"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:textAllCaps="false"
            android:text="Four"/>

        <Button
            android:id="@+id/btnFive"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:textAllCaps="false"
            android:text="Five"/>

    </androidx.constraintlayout.widget.ConstraintLayout>

</androidx.constraintlayout.widget.ConstraintLayout>

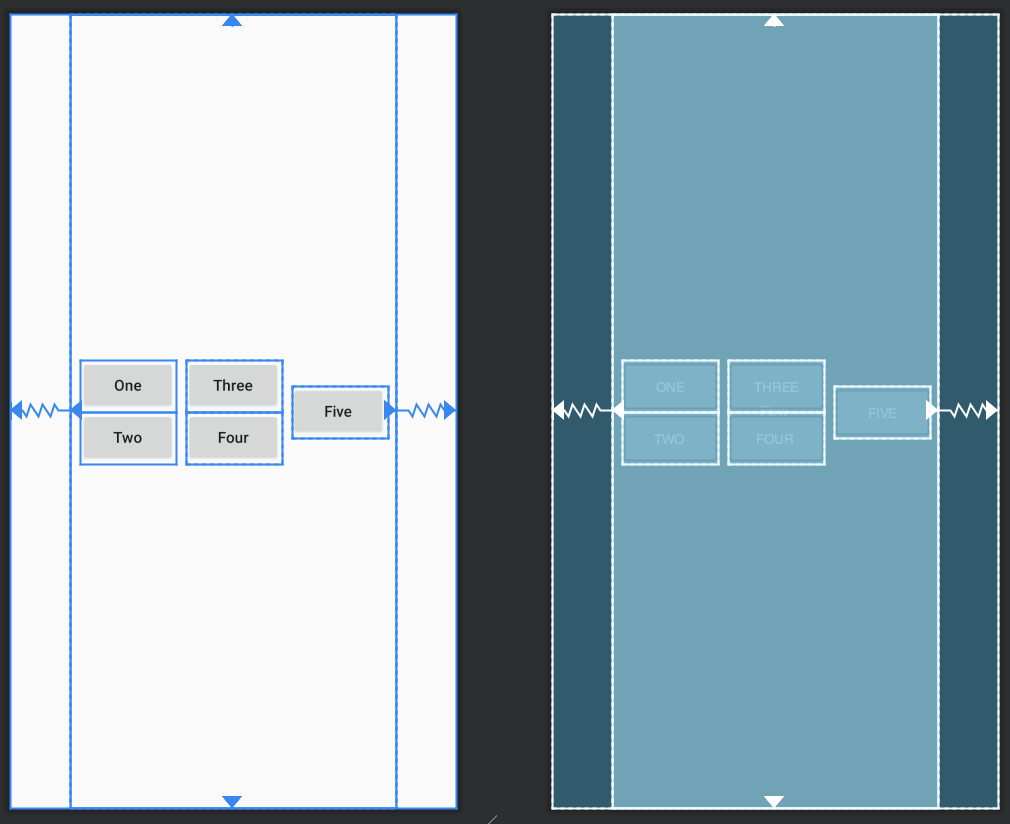

app:flow_wrapMode="chain"

app:flow_maxElementsWrap="2"

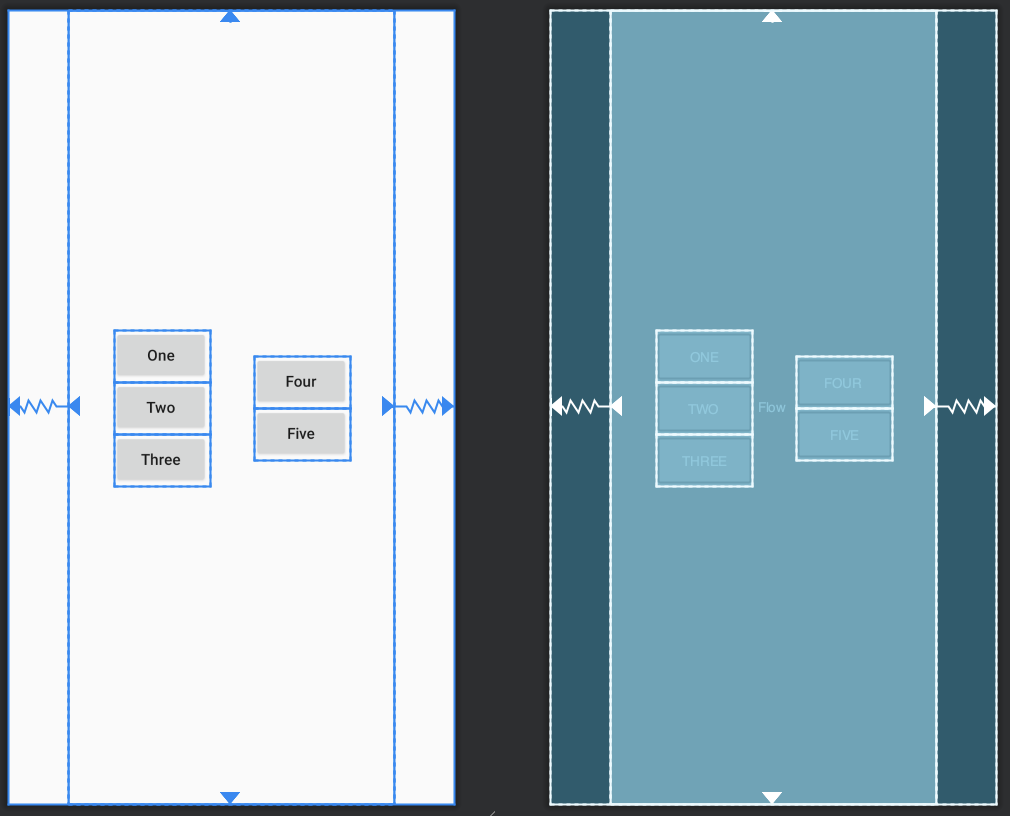

activity_main.xml











activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:ignore="MissingConstraints">

    <androidx.constraintlayout.widget.ConstraintLayout
        android:layout_width="300dp"
        android:layout_height="match_parent"
        app:layout_constraintTop_toTopOf="parent"
        app:layout_constraintLeft_toLeftOf="parent"
        app:layout_constraintRight_toRightOf="parent"
        app:layout_constraintBottom_toBottomOf="parent">

        <androidx.constraintlayout.helper.widget.Flow
            android:layout_width="match_parent"
            android:layout_height="match_parent"
            android:orientation="vertical"
            app:constraint_referenced_ids=" btnOne, btnTwo, btnThree, btnfour, btnFive"
            app:flow_verticalStyle="packed"
            app:flow_wrapMode="chain"
            app:flow_maxElementsWrap="3"
            app:layout_constraintBottom_toBottomOf="parent"
            app:layout_constraintEnd_toEndOf="parent"
            app:layout_constraintStart_toStartOf="parent"
            app:layout_constraintTop_toTopOf="parent" />

        <Button
            android:id="@+id/btnOne"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:textAllCaps="false"
            android:text="One"/>

        <Button
            android:id="@+id/btnTwo"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:textAllCaps="false"
            android:text="Two"/>

        <Button
            android:id="@+id/btnThree"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:textAllCaps="false"
            android:text="Three"/>

        <Button
            android:id="@+id/btnfour"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:textAllCaps="false"
            android:text="Four"/>

        <Button
            android:id="@+id/btnFive"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:textAllCaps="false"
            android:text="Five"/>

    </androidx.constraintlayout.widget.ConstraintLayout>

</androidx.constraintlayout.widget.ConstraintLayout>

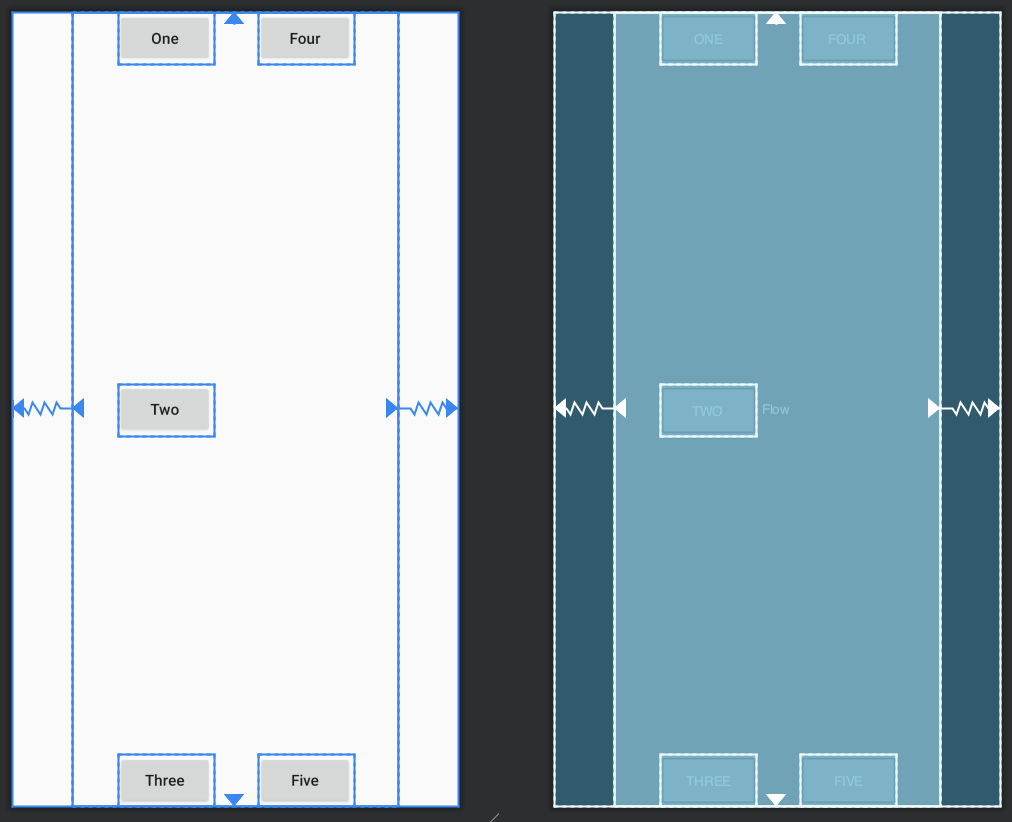

activity_main.xml











activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:ignore="MissingConstraints">

    <androidx.constraintlayout.widget.ConstraintLayout
        android:layout_width="300dp"
        android:layout_height="match_parent"
        app:layout_constraintTop_toTopOf="parent"
        app:layout_constraintLeft_toLeftOf="parent"
        app:layout_constraintRight_toRightOf="parent"
        app:layout_constraintBottom_toBottomOf="parent">

        <androidx.constraintlayout.helper.widget.Flow
            android:layout_width="match_parent"
            android:layout_height="match_parent"
            android:orientation="vertical"
            app:constraint_referenced_ids=" btnOne, btnTwo, btnThree, btnfour, btnFive"
            app:flow_verticalStyle="spread"
            app:flow_wrapMode="chain"
            app:flow_maxElementsWrap="3"
            app:layout_constraintBottom_toBottomOf="parent"
            app:layout_constraintEnd_toEndOf="parent"
            app:layout_constraintStart_toStartOf="parent"
            app:layout_constraintTop_toTopOf="parent" />

        <Button
            android:id="@+id/btnOne"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:textAllCaps="false"
            android:text="One"/>

        <Button
            android:id="@+id/btnTwo"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:textAllCaps="false"
            android:text="Two"/>

        <Button
            android:id="@+id/btnThree"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:textAllCaps="false"
            android:text="Three"/>

        <Button
            android:id="@+id/btnfour"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:textAllCaps="false"
            android:text="Four"/>

        <Button
            android:id="@+id/btnFive"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:textAllCaps="false"
            android:text="Five"/>

    </androidx.constraintlayout.widget.ConstraintLayout>

</androidx.constraintlayout.widget.ConstraintLayout>

app:flow_verticalStyle="spread"

activity_main.xml











activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:ignore="MissingConstraints">

    <androidx.constraintlayout.widget.ConstraintLayout
        android:layout_width="300dp"
        android:layout_height="match_parent"
        app:layout_constraintTop_toTopOf="parent"
        app:layout_constraintLeft_toLeftOf="parent"
        app:layout_constraintRight_toRightOf="parent"
        app:layout_constraintBottom_toBottomOf="parent">

        <androidx.constraintlayout.helper.widget.Flow
            android:layout_width="match_parent"
            android:layout_height="match_parent"
            android:orientation="vertical"
            app:constraint_referenced_ids=" btnOne, btnTwo, btnThree, btnfour, btnFive"
            app:flow_verticalStyle="spread_inside"
            app:flow_wrapMode="chain"
            app:flow_maxElementsWrap="3"
            app:layout_constraintBottom_toBottomOf="parent"
            app:layout_constraintEnd_toEndOf="parent"
            app:layout_constraintStart_toStartOf="parent"
            app:layout_constraintTop_toTopOf="parent" />

        <Button
            android:id="@+id/btnOne"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:textAllCaps="false"
            android:text="One"/>

        <Button
            android:id="@+id/btnTwo"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:textAllCaps="false"
            android:text="Two"/>

        <Button
            android:id="@+id/btnThree"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:textAllCaps="false"
            android:text="Three"/>

        <Button
            android:id="@+id/btnfour"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:textAllCaps="false"
            android:text="Four"/>

        <Button
            android:id="@+id/btnFive"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:textAllCaps="false"
            android:text="Five"/>

    </androidx.constraintlayout.widget.ConstraintLayout>

</androidx.constraintlayout.widget.ConstraintLayout>

app:flow_verticalStyle="spread_inside"



activity_main.xml











저작자표시

'Android > XML' 카테고리의 다른 글

ClipToPadding  (0) 2020.08.27
android:windowSoftInputMode  (0) 2020.08.26
<ConstraintLayout>  (0) 2020.08.23
핸드폰 회전 시 동영상 초기화 방지  (0) 2020.08.17
<SeekBar>  (0) 2020.08.15
댓글
공지사항
최근에 올라온 글
최근에 달린 댓글
Total
Today
Yesterday
링크
TAG more
«   2024/05   »
일 월 화 수 목 금 토
1 2 3 4
5 6 7 8 9 10 11
12 13 14 15 16 17 18
19 20 21 22 23 24 25
26 27 28 29 30 31
글 보관함
